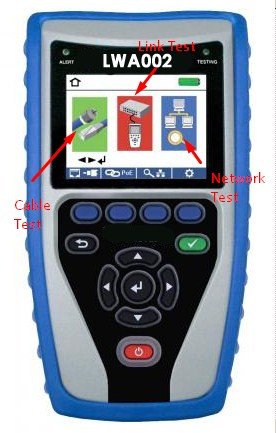

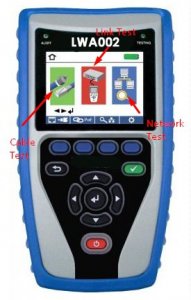

LWA002-KKINSTRUMENTS CABLING AND ADVANCED NETWORK TESTER-MADE IN USA
Category: Cable Testers
Tests 10/100/1000 Base-T, IPV4/IPV6, VLAN, DHCP and more
The Cabling and Advanced Network Tester takes all the features and functionality of the Cable Prowler™ and adds the capability to identify, monitor, and troubleshoot LAN issues associated with physical layer and link conditions in the network.
- Supports IPV4 and IPV6 protocols
- Verifies DHCP connectivity and DNS
- Pings IPV4, IPV6, and URL addresses
- CDP, LLDP, NDP, and VLAN detection
- TCP/UDP Throughput Test
- Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
- Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gbps
- Link light to identify location on a hub/switch/router port
- Tests CAT3/5e/6/6a Ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
- Supports up to 8 testing and ID remotes for network & telephone cables
- Supports up to 20 network and coax ID-only mapping remotes
- Ability to define Network test name, cable name, save and print all results (cable testing and network testing)

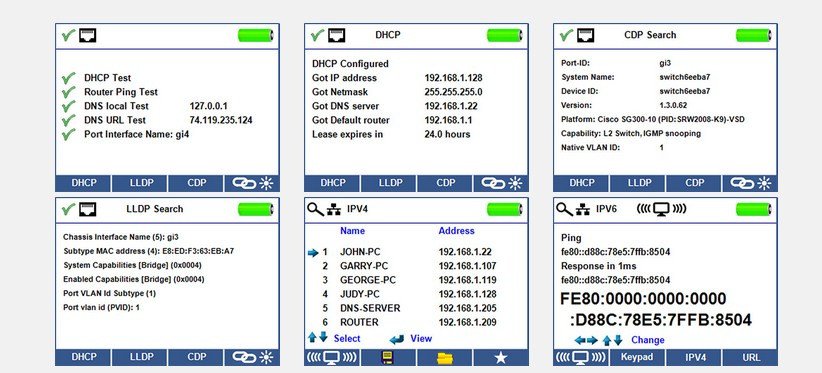

Network - PoE Testing
-
Detects and reports advertised and current link speed and link speed
-
Ping both IPV4 and IPV6 addresses
-
Detects the presence of VLANs
-
CDP/LLDP/ NDP and VLAN identification provides network configuration information
-
Ping specific URL to verify WAN connectivity
-
Blinks link light to identify location on a hub/switch/router port
-
Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
Application
-
Preview test results as PDF or CSV
-
Perform throughput test using the Net Prowler
- High resolution full color graphical display
- Displays wire map in color per TIA-568A/B color codes, in pin or pair order (configurable)
- Protective silicone holster
- Micro USB connector (to export cable reports), RJ45 connector, and coax connector
| Measurement Technology | Time Domain Reflectometry (TDR) |
| Cable Measurements | Cable Testing and ID: up to 1000 ft (305 m) Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m) Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft) Supports 8 continuity and ID number remotes (RJ-45) Supports 20 RJ-45 and 20 F-connector ID only remotes |
| Power over Ethernet | Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE Tests for classes and loads cable up to 25.5 watts (at class 4) Identifies Mode A or B (pairs with PoE) |
| Active Ethernet | Indicates advertised speeds of 10/100/1000base-t half or full duplex Can Link to network at 10/100base-t |
| Maximum Voltage | Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester. • RJ Jack: 66 Vdc or 55 Vac • F-connector: 50 Vdc or Vac |
| Save Test Results | Stores up to 250 Cable or network tests with user defined names |
| Tone Generation | Tone Frequencies: 730 Hz and 1440 Hz |
| Languages | English, French, Spanish, German, Italian |
| Battery Life | For 6 x AA, 9VDC, 2,200 mA-hr (typical) alkaline battery: Operating – 20 hours typical Standby – Life of battery (20uA max) Batteries are included |
| Altitude | 10,000 ft (3048 m) operating |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -22 to +140°F (-30 to 60°C) |
| Humidity | 10 to 90% non-condensing |
| Enclosure | High-strength PC/ABS plastic with V0 rating with boot Withstands 4 foot drop on to concrete |
| Size | 1.85”H x 3.6”W x 6.8”L (4.7 x 9.15 x 17.3 cm) |
| Weight | With batteries: 1 lb 2 oz (510 g) |
| Safety Compliances | CE |
| Warranty | 1 Year |
