The  Ethernet Speed Certifier offers a complete solution to test and speed certify the data-carrying capabilities of Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting faults in the cable wiring, and ensuring that cables are able to support the speed capabilities of active equipment.

• Speed Certification to IEEE standards 802.3
• Cable testing to TIA568A/B

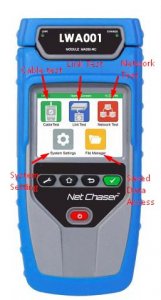

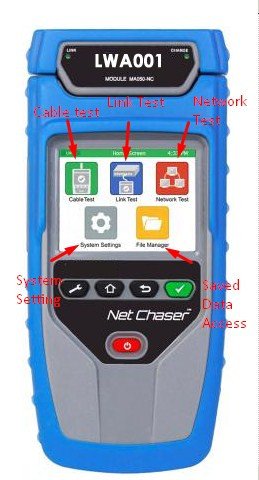

The NetChaser’s advanced discovery gives the clearest vision of network layout and interfaces between active components like servers, switches, routers, etc. All the information is collected, stored, and ready for reporting. 21st century speed certification.

• Pings specific IPs or URL addresses

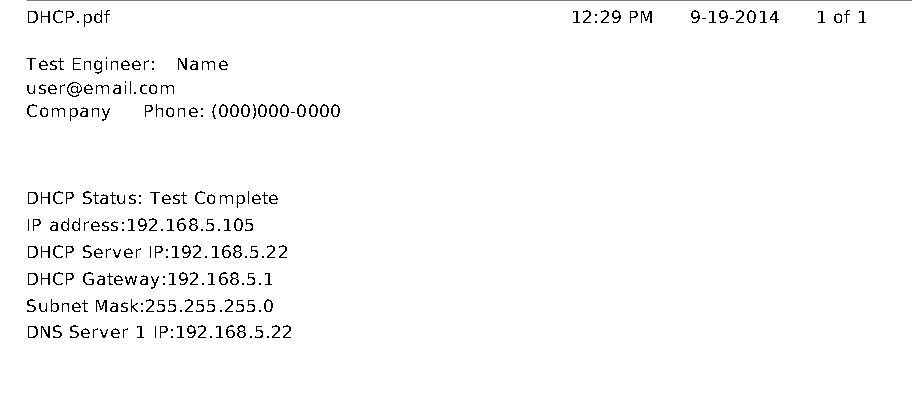

• DHCP
• Traceroute
• VLAN

• Measures and displays length for each pair in feet or meters

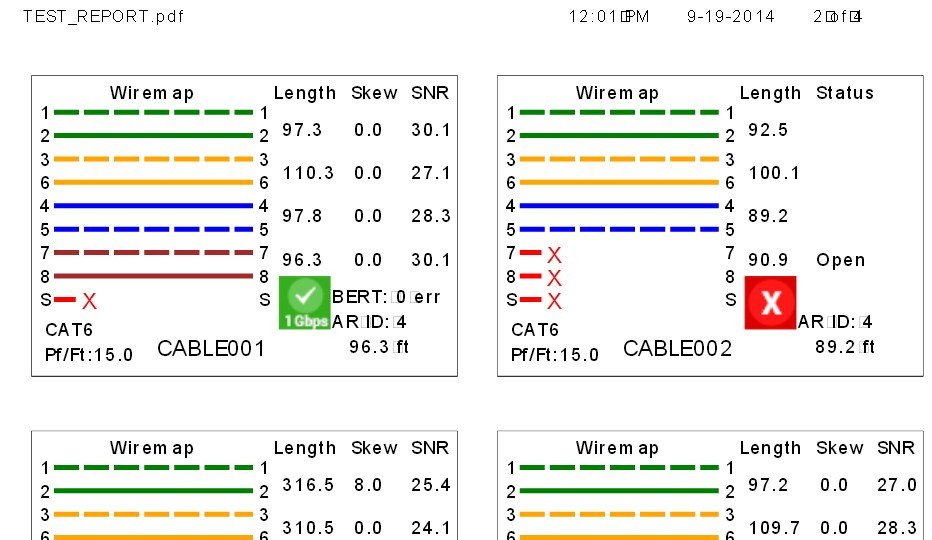

• Improperly terminated cables are clearly displayed on a color graphical wire-mapping display

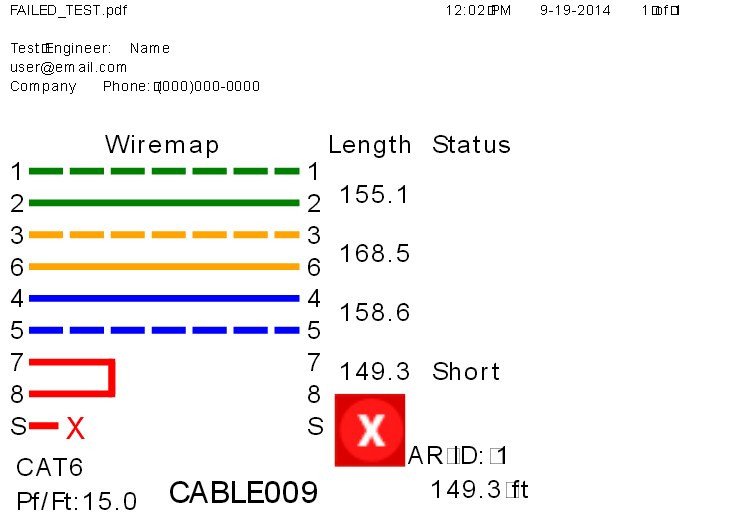

• Detects Length to Opens & Shorts
• Verifies Continuity for RJ45, and Coax cables

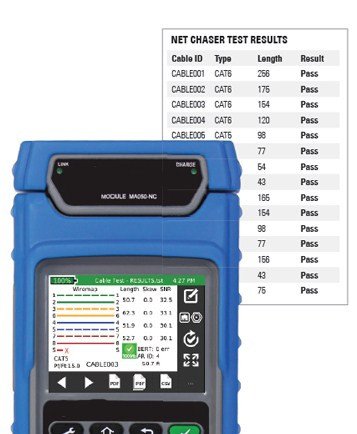

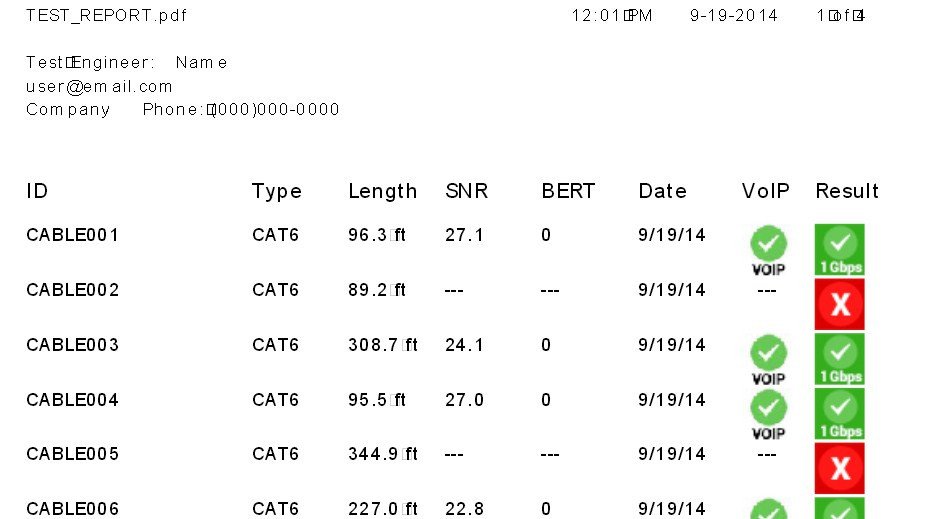

• Saves test results and easily uploaded to a computer
• Tone Generation
• ID Only remotes (Network and Coax) - up to 20 available.
• Testing and ID Remotes - up to 8 available.
• Active Ethernet (Link Capability & Link Status)

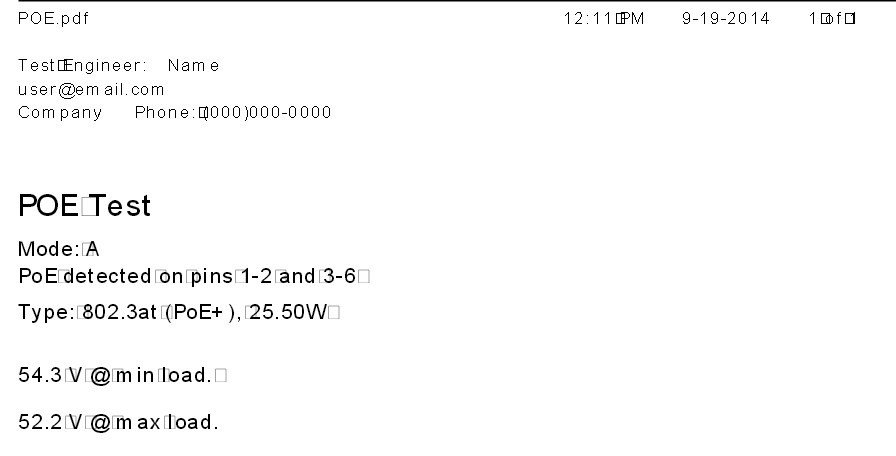

• Detects PoE/PoE+ and load test for voltage drop
• IPV4 Support (IPV6 available late 2014)
• VLAN Discovery
• Ping to a specific IP or URL address
• Ping up to 10 addresses at a time
• Link Light
• DHCP

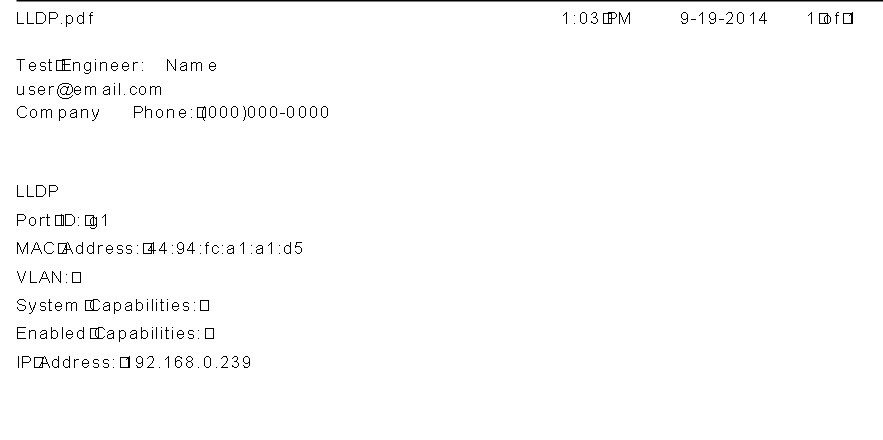

• Discovers CDP and LLDP Protocols
• Traceroute
